Razor Barbed Wire

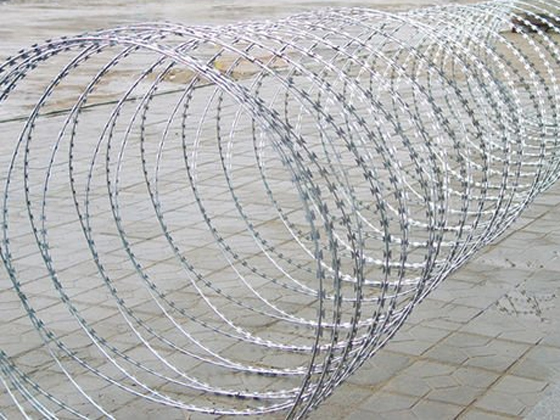

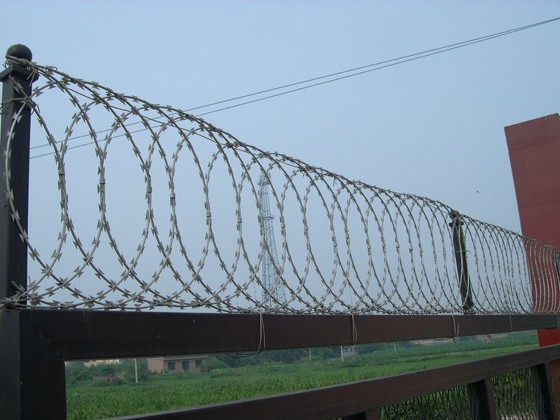

Razor Barbed Wire is a highly developed form of the traditional barbed wire. The design of the razor wire barbs and the enhanced cutting resistance of the steel tape is a much more effective deterrent than barbed wire in preventing intruders climbing over or cutting through the wire.
Razor Wire Concertina Specification / Options
Razor Blade Specification:
|
Reference Number
|
Blade Style
|
Thickness
|
Wire Dia
|
Barb
Length |
Barb
Width |
Barb
spacing |
|
BTO-10
|
 |
0.5±0.05
|
2.5±0.1
|
10±1
|
13±1
|
26±1
|
|
BTO-12
|
 |
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-18
|
 |
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
 |
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BTO-28
|
 |
0.5±0.05
|
2.5
|
28
|
15
|
45±1
|
|
BTO-30
|
 |
0.5±0.05
|
2.5
|
30
|
18
|
45±1
|
|
CBT-60
|
 |
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±2
|
|
CBT-65
|
 |
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
RAZOR BARBED WIRE Specification:
| Barbed Tape Wire Specification | ||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
